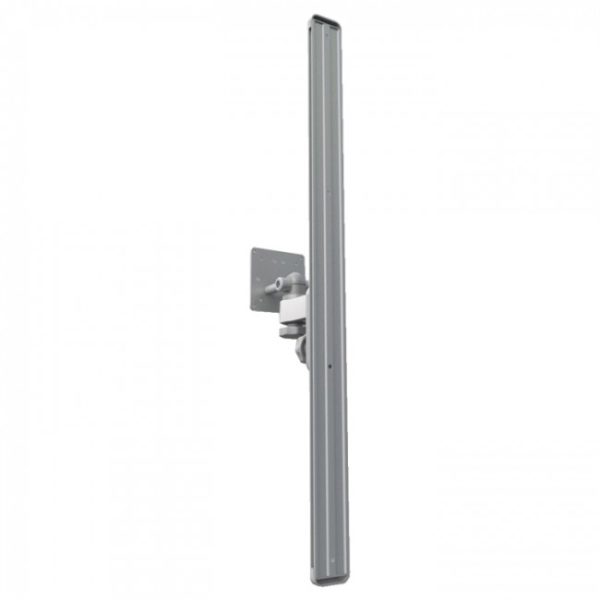

Ultra 65 Monitor Wall Track Mount

SKU: N/A

Mounting Surface: Wall Track Mount
VESA Interface: 75mm x 75mm, 100mm x 100mm
Wall Track: 19” (483mm), 36” (915mm), 50” (1270mm)
Max Weight Capacity: 13.6Kg
Height Adjustment: Up to 1270mm
Arm Reach: up to 360mm
Tilt Adjustment: +/- 37.5°
Swivel Adjustment: +/- 90°
Colours: Medical White, Light Grey, Black

Clear
Request a Quote

The ErgoMounts Ultra 65 Medical Monitor Wall Track Mount is compact but can hold screens up to an impressive 13.6Kg in weight. This mounting solution is ideal for when the monitor needs to be mounted close to the wall but still retain the ability to tilt and pivot the screen. The mount can provide close to 75° of tilt depending on the size of the monitor being used. The benefit of using an ErgoMounts Wall Track Mount is that it allows for height adjustment anywhere along the vertical track. As standard these tracks are available in 19”, 36” or 50”.

This is a medical grade monitor arm and has been designed with hospital or dental environments in mind and can withstand regular cleaning with hospital grade solutions (10,000 parts bleach per 1,000,000).

This product is made out of billet Aluminium and is powder coated to produce a durable, lasting finish.

All of our Ultra 65 Wall Track Mounts are built to order by our manufacturing partners ICWUSA. On arrival to our headquarters all products are then hand assembled in the UK to ensure they meet ErgoMounts high product standards.

With several configurable options this product can be modified to meet your exact requirements. This includes arm reach lengths and 3 standard colours (more colours are available on request). If you are having trouble configuring the right product for you contact our sales team or alternatively speak to a live representative via our webchat at the bottom of the page.

Installation and Maintenance is available on the product, contact us today to find out more.

Arm Reach

Compact, Extended

Colour

Medical White, Light Grey, Black

Interface

VESA 100 x 100, VESA 75 x75

Max Capacity

13.6KG

Swivel Adjustment

+/-90°

Tilt Adjustment

+/- 37.5°

Wall Track Length

19 Inches, 36 Inches, 50 Inches

Resources

Specification Sheet
